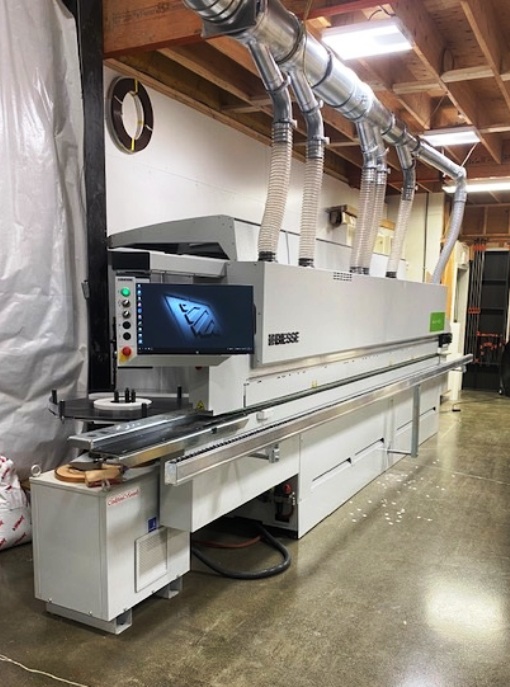

Biesse Akron Model 1440 A Single Sided Edgebander
Min. panel height: 10mm
Max. panel height: 60mm
• Height of
edgebanding material: 14-64mm
• Thickness of edgebanding material
in rolls: 0.4-3mm
Thickness of edgebanding in strips: 0.4-12mm
Min. panel protrusion from track: 25mm
Panel length: 140-3200mm
Min. panel width (with length 140mm): 85mm
Min. panel width (with
length 250mm): 50mm
• Pre-milling unit RT 02
• Gluing, edge
feeding and pressing unit VC-511
End trimming unit IN-801
trimming unit RI-501
Multifunction 2 motor corner rounding unit
• Edge scraper unit RB02
• Glue scraper unit RC02
• Hot air blower unit PH-501
• Belt pressure
beam. The top presser comprises a rubber belt with a
coating. The thrust exercised on the panel is provided by springs
housed on techno polymer connecting rods.
lubrication system with dynamic track absorption.
speed kit, 12-18 m/min. • Manual infeed system for narrow pieces
- Anti-adhesive unit ADZ02, to apply
anti-adhesive liquid on the top and
bottom of the surface of the
panel to ease a good cleaning of the piece
being processed. It
is positioned before the pre-mill unit.
One coil automatic edge
Hybrid gluing head for granulated EVA and polyurethane
Premelter TM10 for polyurethanic glue in cartridges. On
loading premelter for PUR glues.
red lamp to heat up the panel side before the glue
in order to optimize the adhesion process.
Device for the
application of anti-static/cooling liquid before end trimming unit
fast cooling of the glue line and to neutralize the
electrostatic charges of the edge.
exclusion of the top/bottom unit for fine trimming unit.
pro-nesting for fine trimming unit, equipped with 2 bearing copiers
to the top vertical copier to permit processing of
panels with holes and/or grooves
Sliding unit for corner rounding
unit, for the application of sliding liquid before
Kit pro-nesting for edge scraper unit, equipped
with 2 bearing copiers in additional
to the top vertical copier
to permit processing of panels with holes and/or grooves
for delicate panels for glue scraper unit
Cleaning unit LPT02 to
apply a cleaning liquid of the glued edge
giving a perfect and
polishing of the edge.
