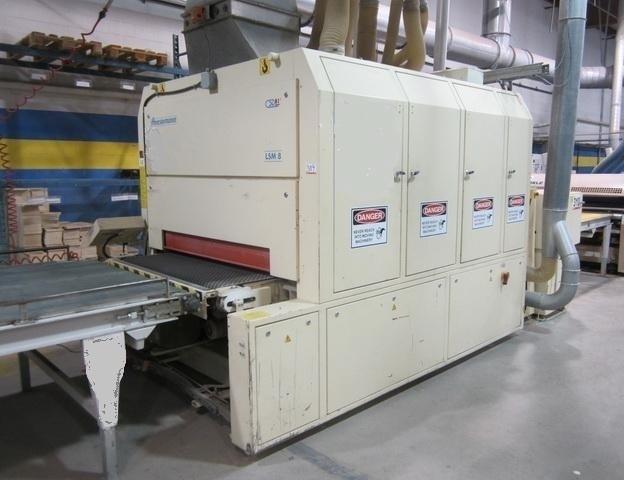

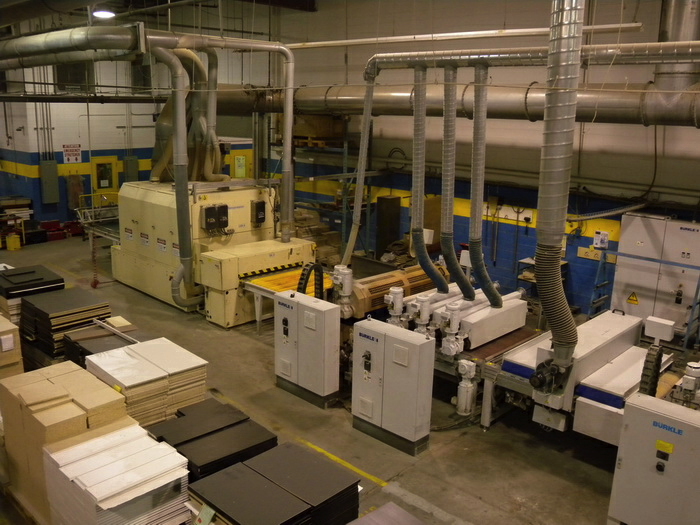

Heeseman Finishing Sander, Model: LSM, Serial No.: 9711241
Working capacity: 53"

Cross sanding - Belt dimensions: 189” x 6”:

1. Sanding speed: 0.5m - 12m /min via frequency changer.
2. Drive power: 24 hp.

One longitudinal sanding belts units: 1. Belt dimension: 103” x 54”
2. Sanding speed: 0.5m- 12m/min. via frequency changer.
3. Drive power: 24 hp

One longitudinal sanding belts units: 1. Belt dimensions: 103” x 54”
2. Sanding speed: 0.5m - 12m /min via frequency changer.
3. Drive power: 24 hp

Pressure beam with computer controlled selective pressure regulation system - infinite
pressure matching of individual pressure elements for optional multi track feeding.
Control roller spacing: 16mm, work piece tolerance compensation up to a minimum of
2mm. The correct point in time for the deployment of the pressure bars is determined
automatically by an electronic line control in dependence of the feed speed.

Brush roll unit.

Centrally adjustable in height including exhaust hood and press on roll.
• Diameter: 220mm
• Drive power: 2 hp
• Bristle trimming: fiber
• Voltage: 600volts, 60 c/s

Work piece suction device for safe transport of work piece shorter than 750mm in feed
direction including integrated ventilator.
